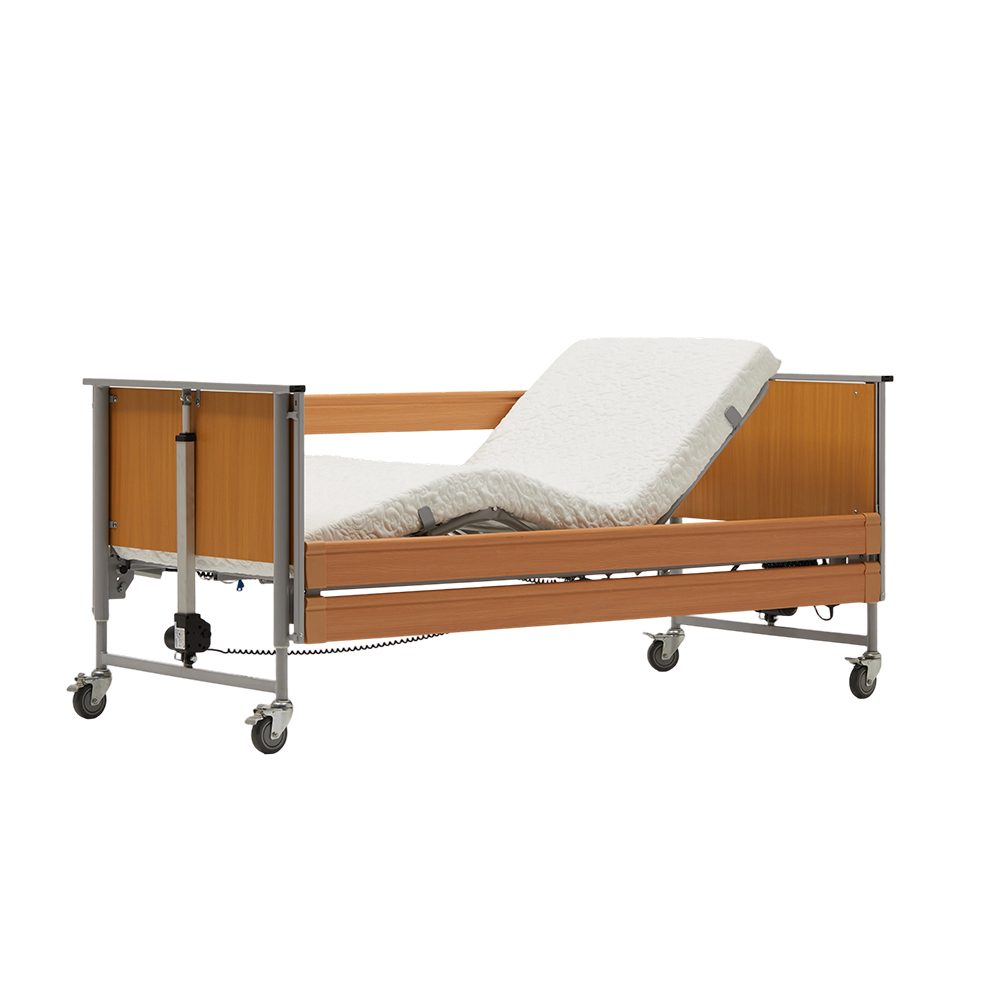

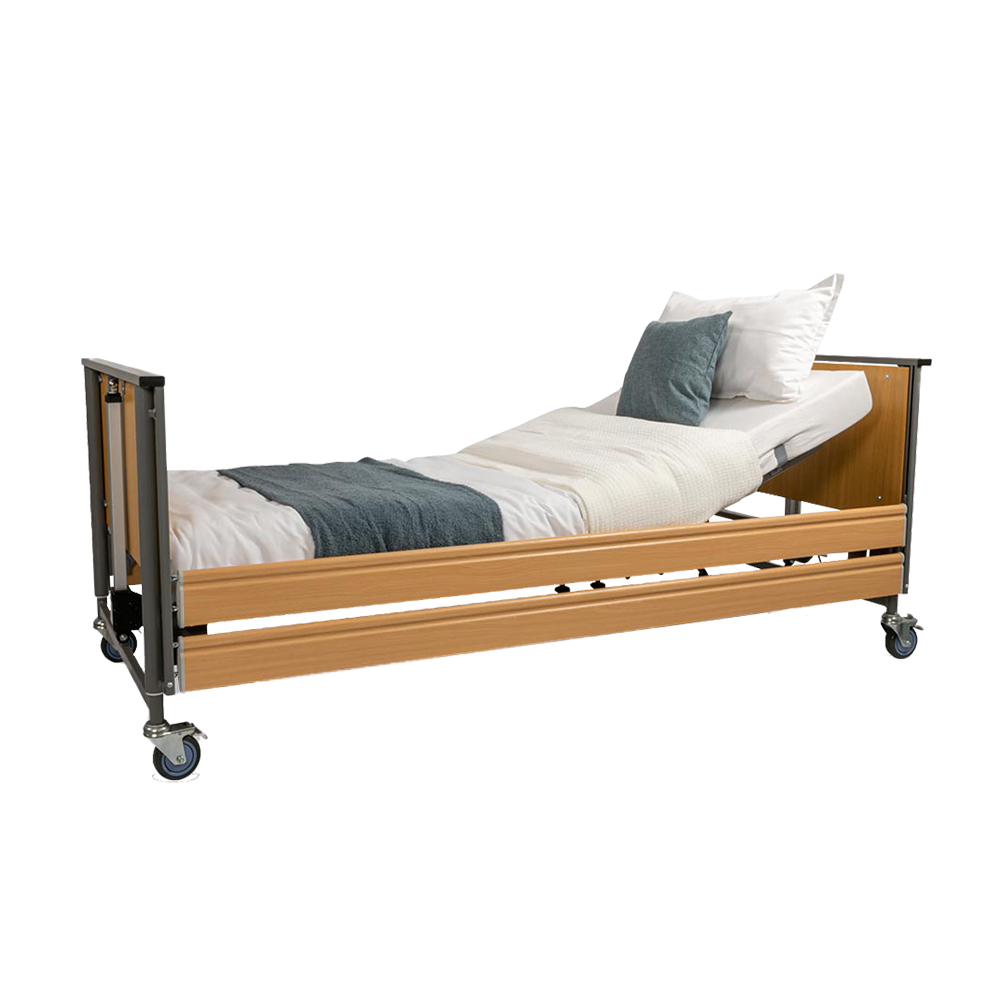

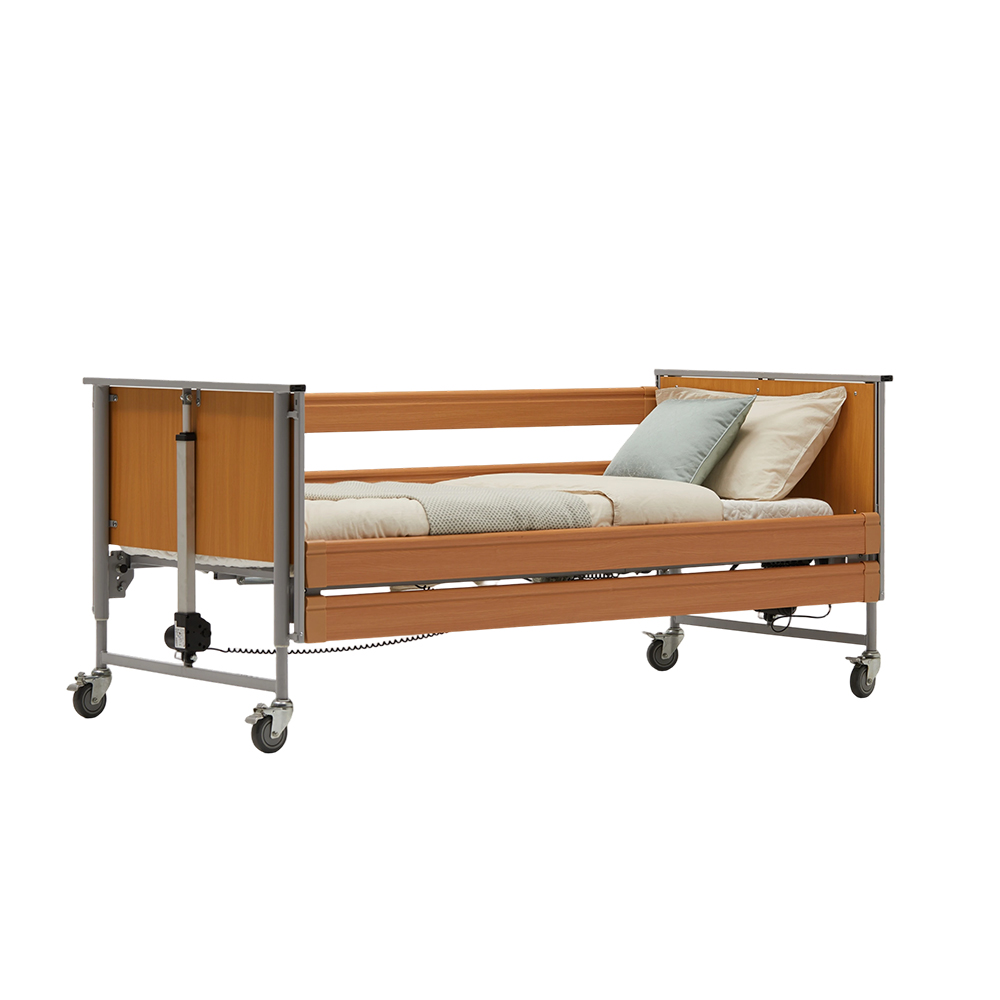

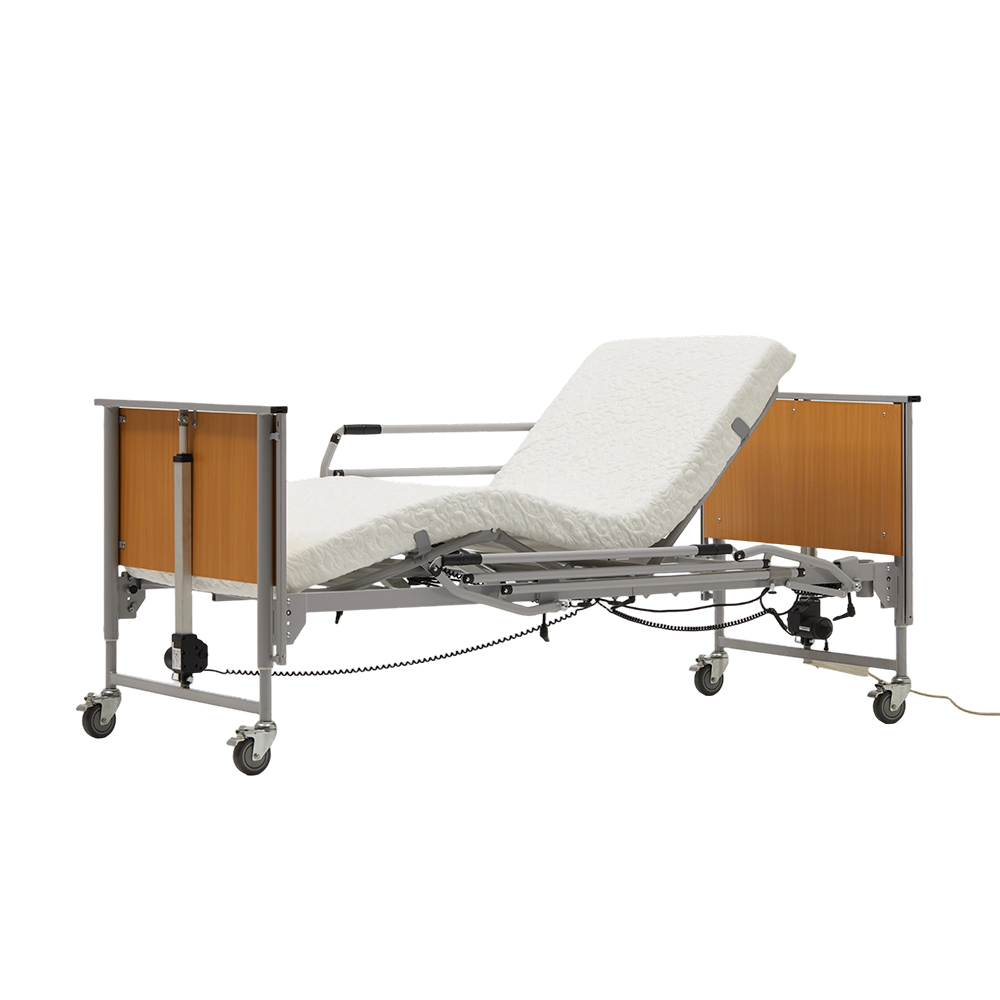

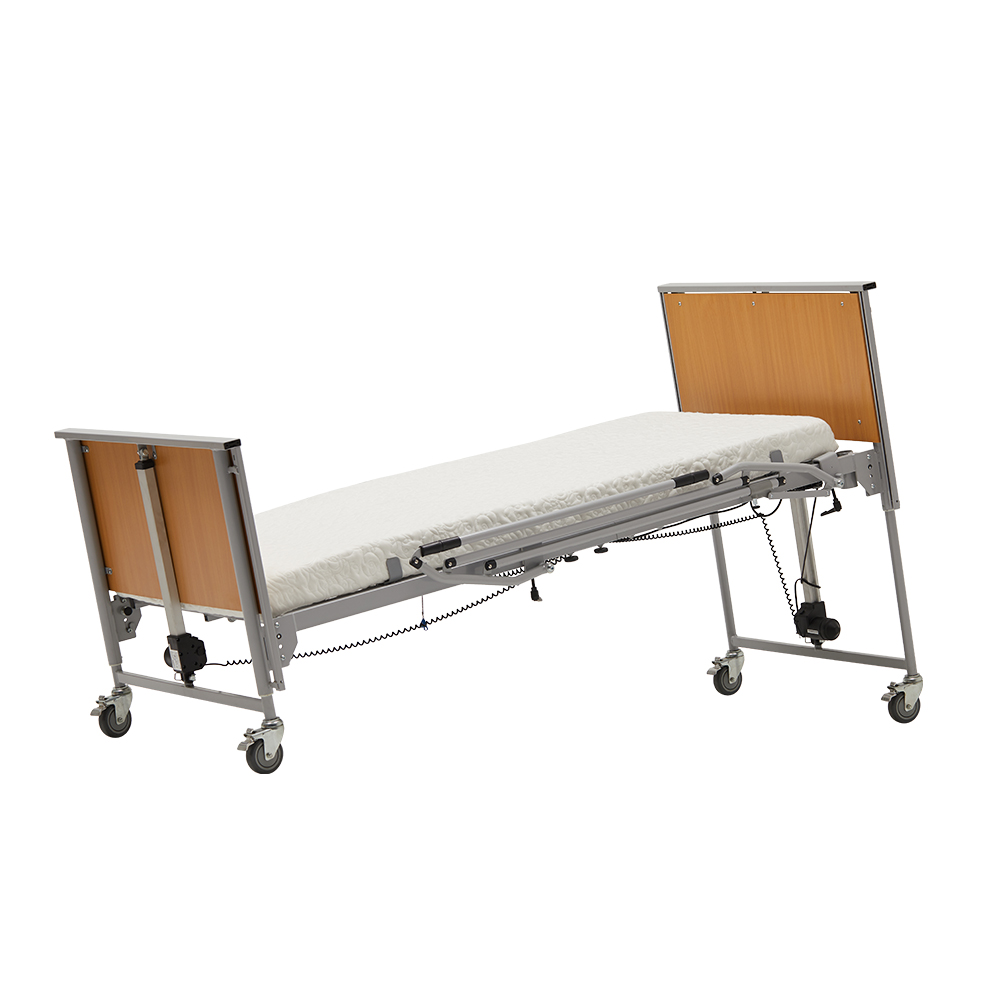

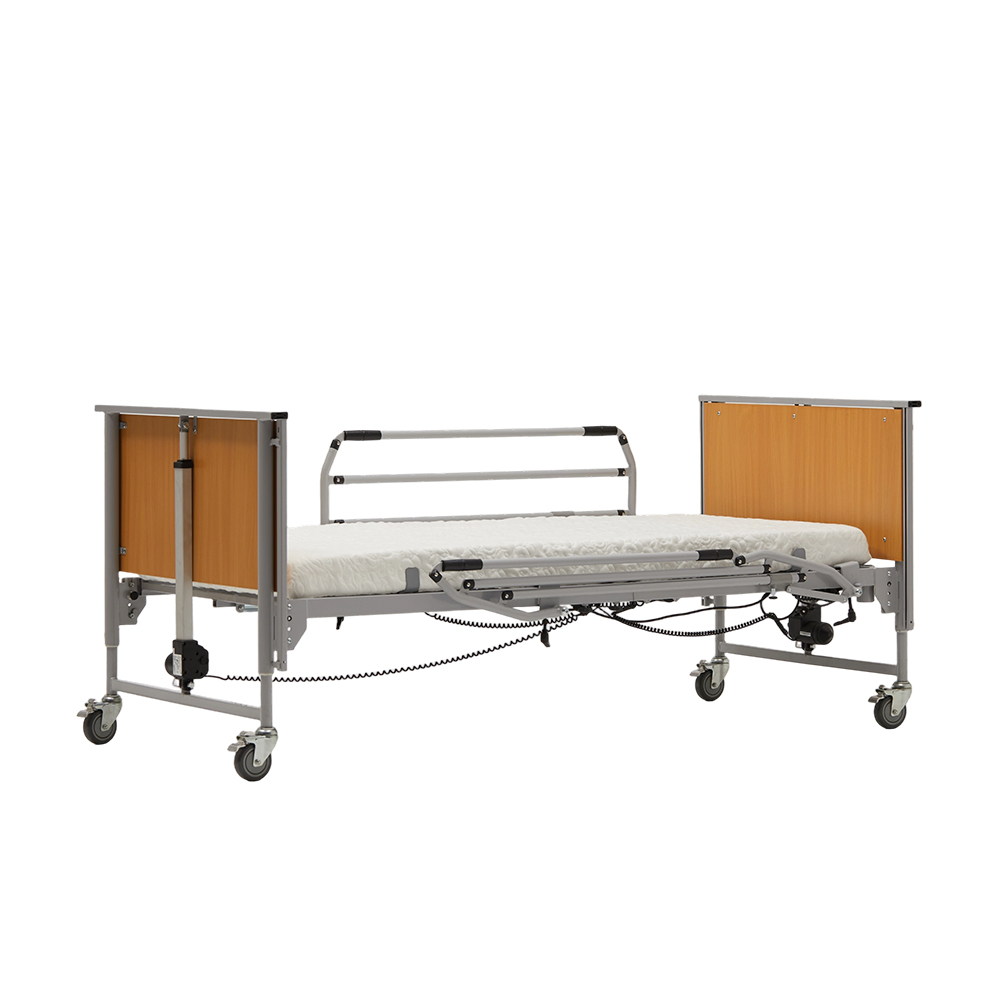

Ecofit S Home Care Bed

Product Advantage

1) Easy and fast assembly without tools

2) Designed for 1 Person delivery and assembly

3) 4-section steel slats platform base 90 x 200 cm with mattress guidance at head- and footrest

4) Easy to clean

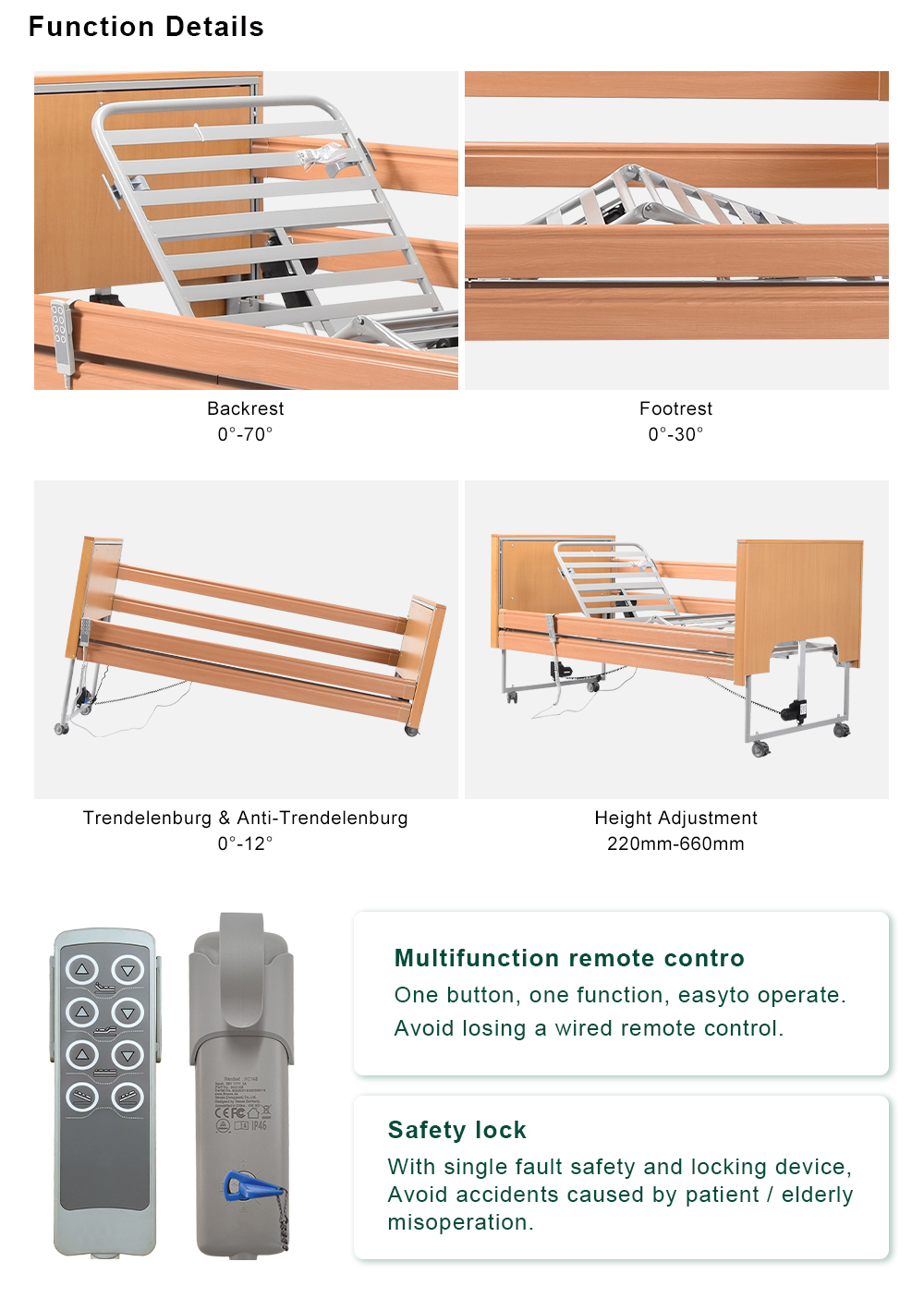

5) Multiple powder colors available for the frame. Electrically operated back rest to 70"and knee break function to 30°Mechanical height adjustment of footrest in 5 positions

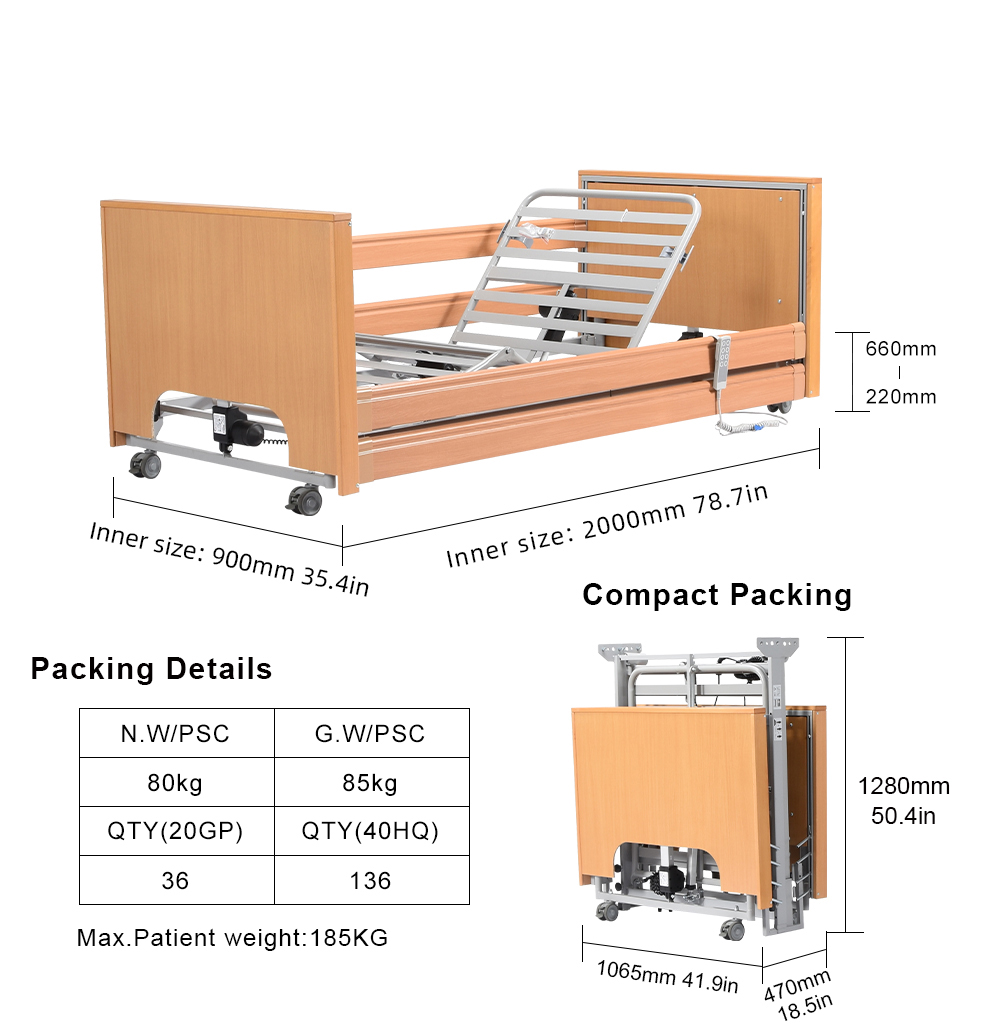

6) Includes Ecofit S and Ecofit S Low two versions. Height adjustment of Ecofit S 385-810mm; Height adjustment of Ecofit S Low: 220-640mm

7) Designed for mattresses up to 20 cm

8) 24 Volt power supply for extra safety

9) Emergency battery 9V powered lowering is standard in case of mains failure

10) Handset with single-fault safety and locking device, in compliance with IEC 60601-2-52

11) Protection class lPX4

12) Max.Patient weight: 185 KGSafe working load: 220 KGSuperb stability through hooks

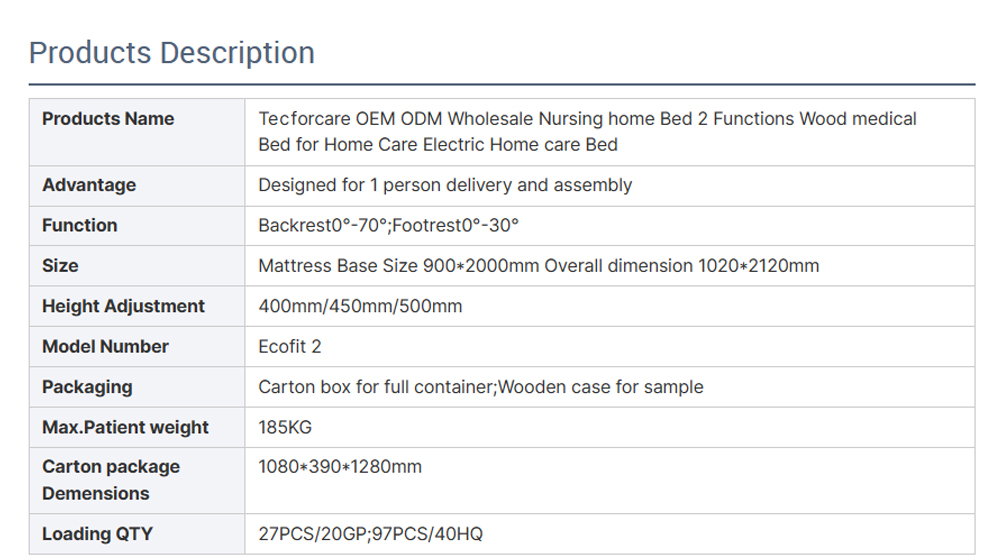

Technical Parameters
