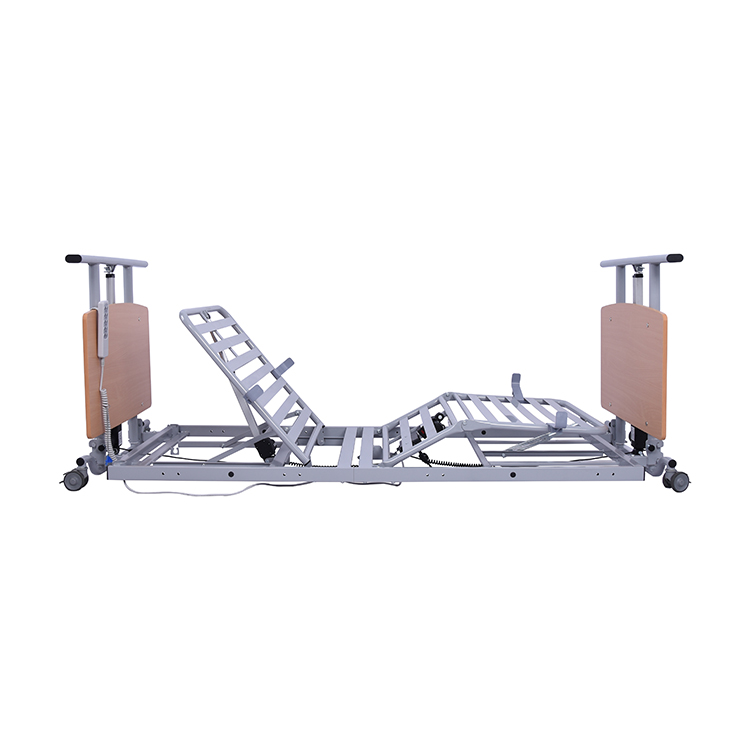

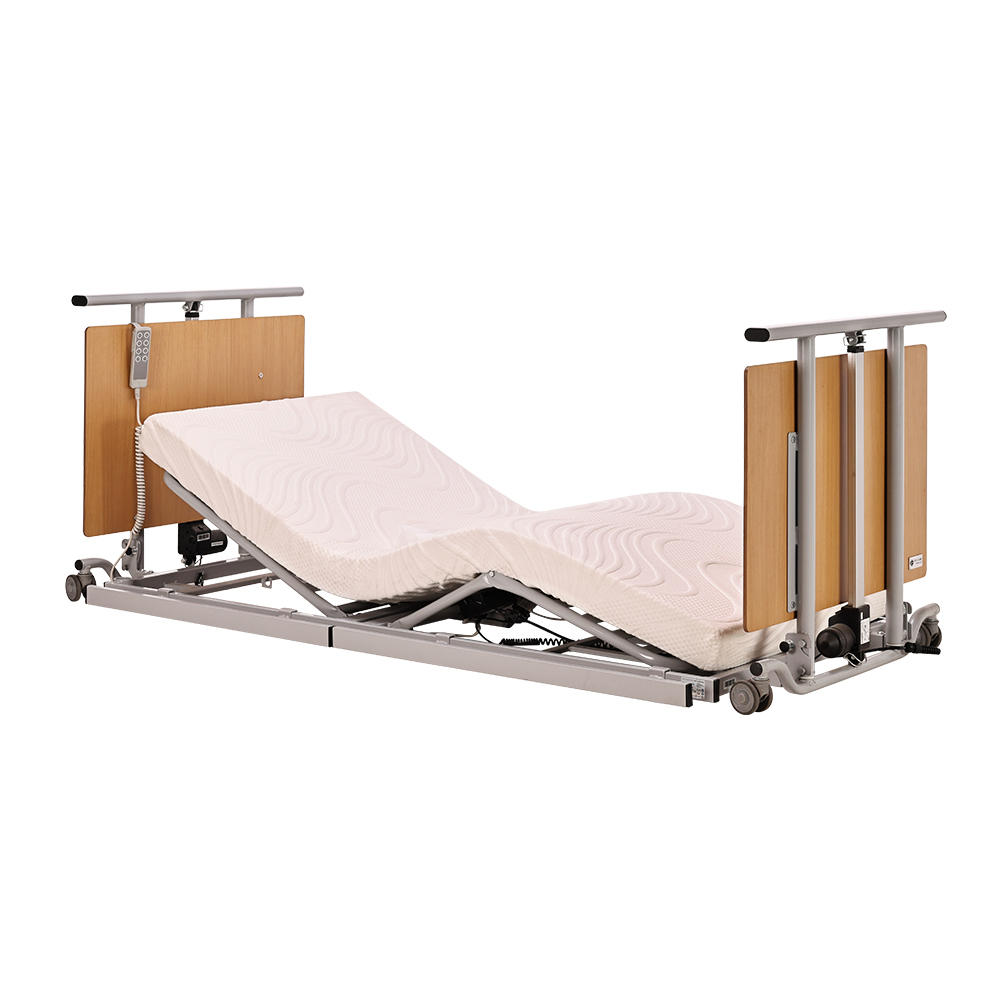

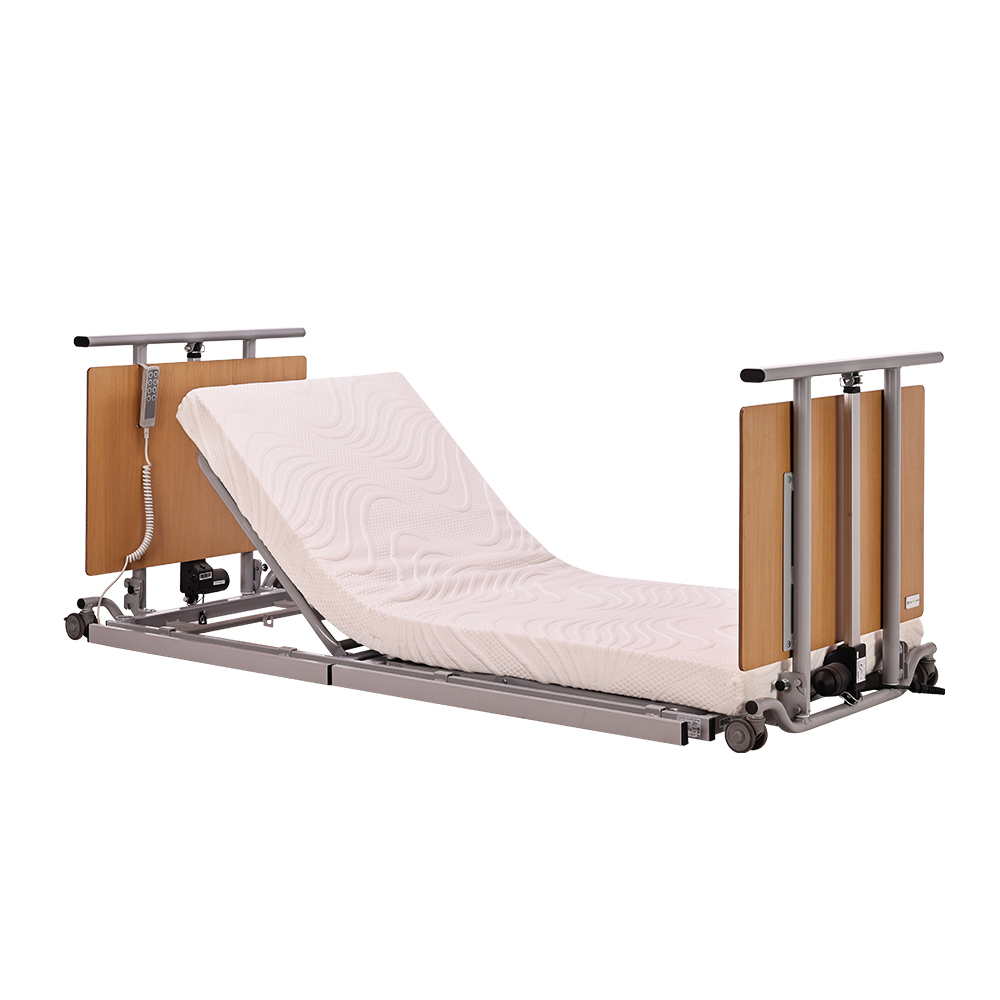

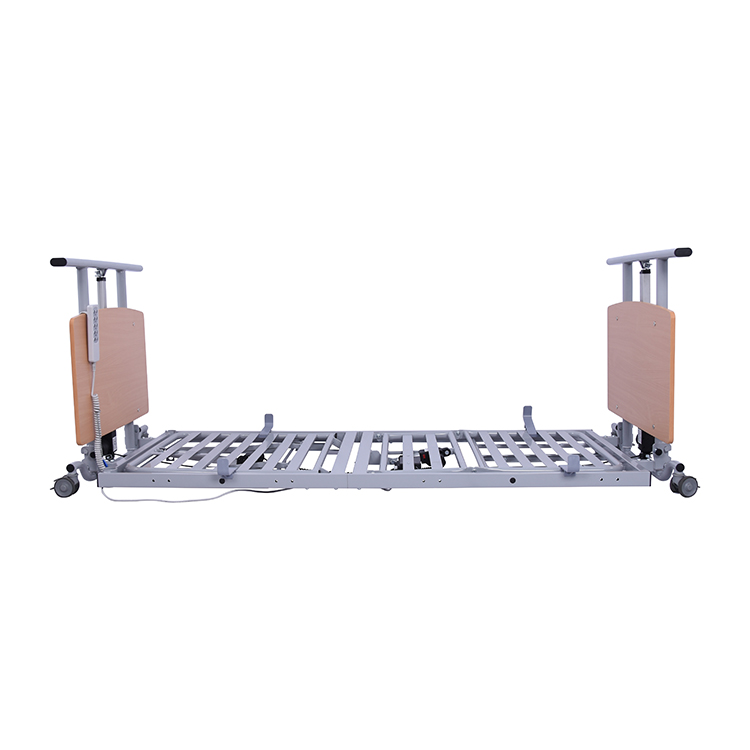

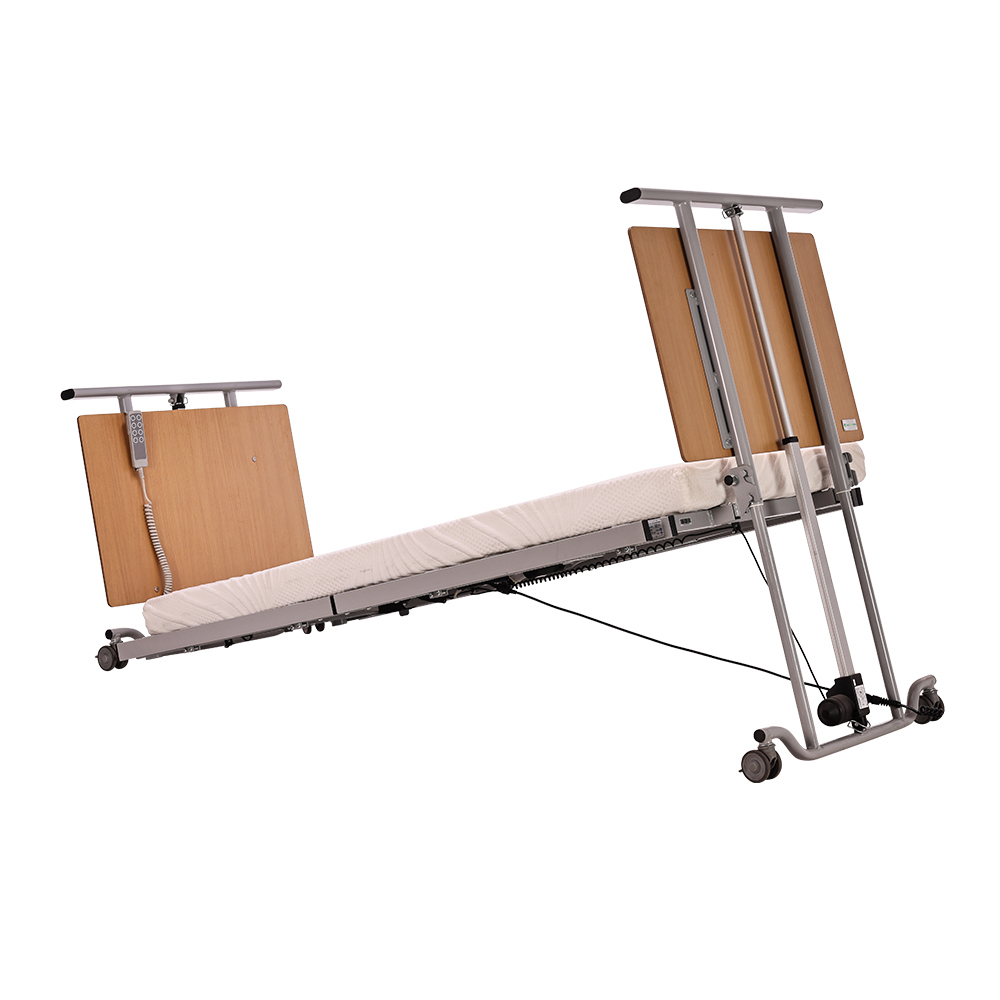

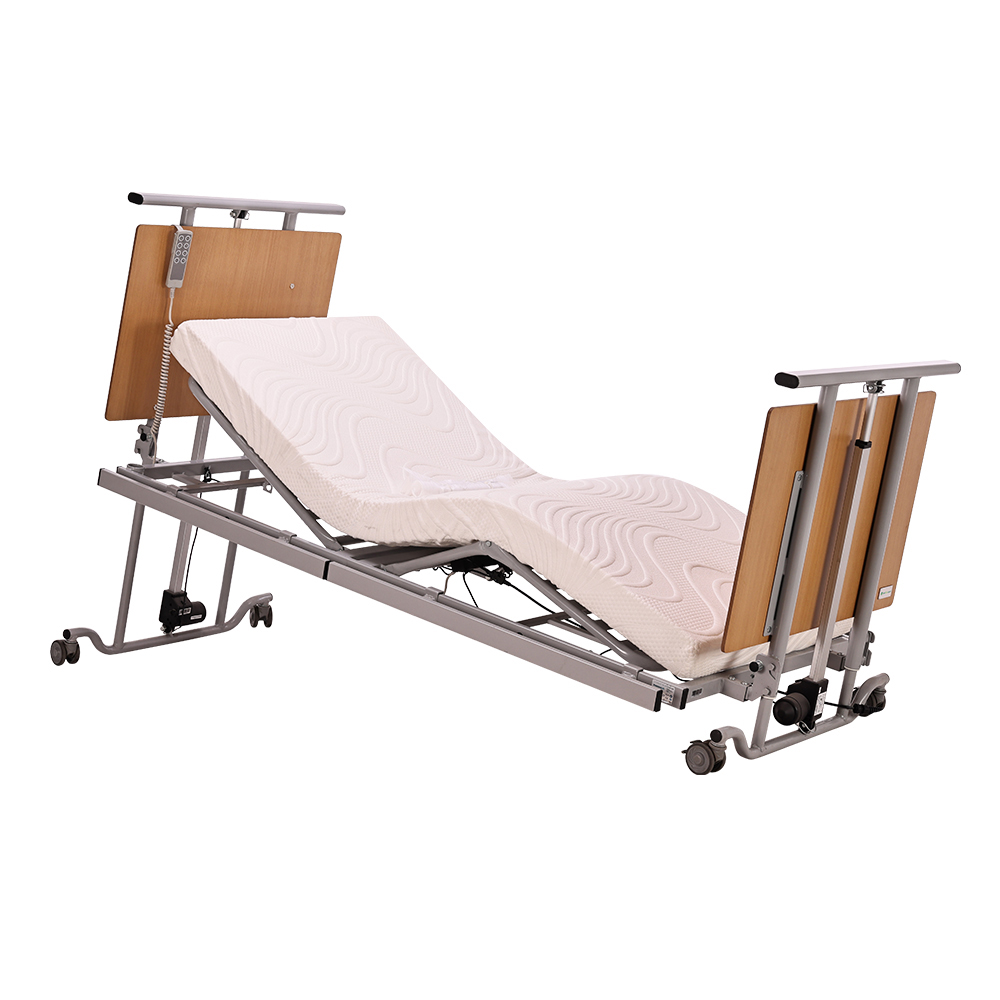

Fondo 500 Wooden Hospital Bed

Product Advantage

1) 4-section steel slats platform base 90 x 200 cm with mattress guidance at head and footrest

2) Multiple powder colors available for the frame.

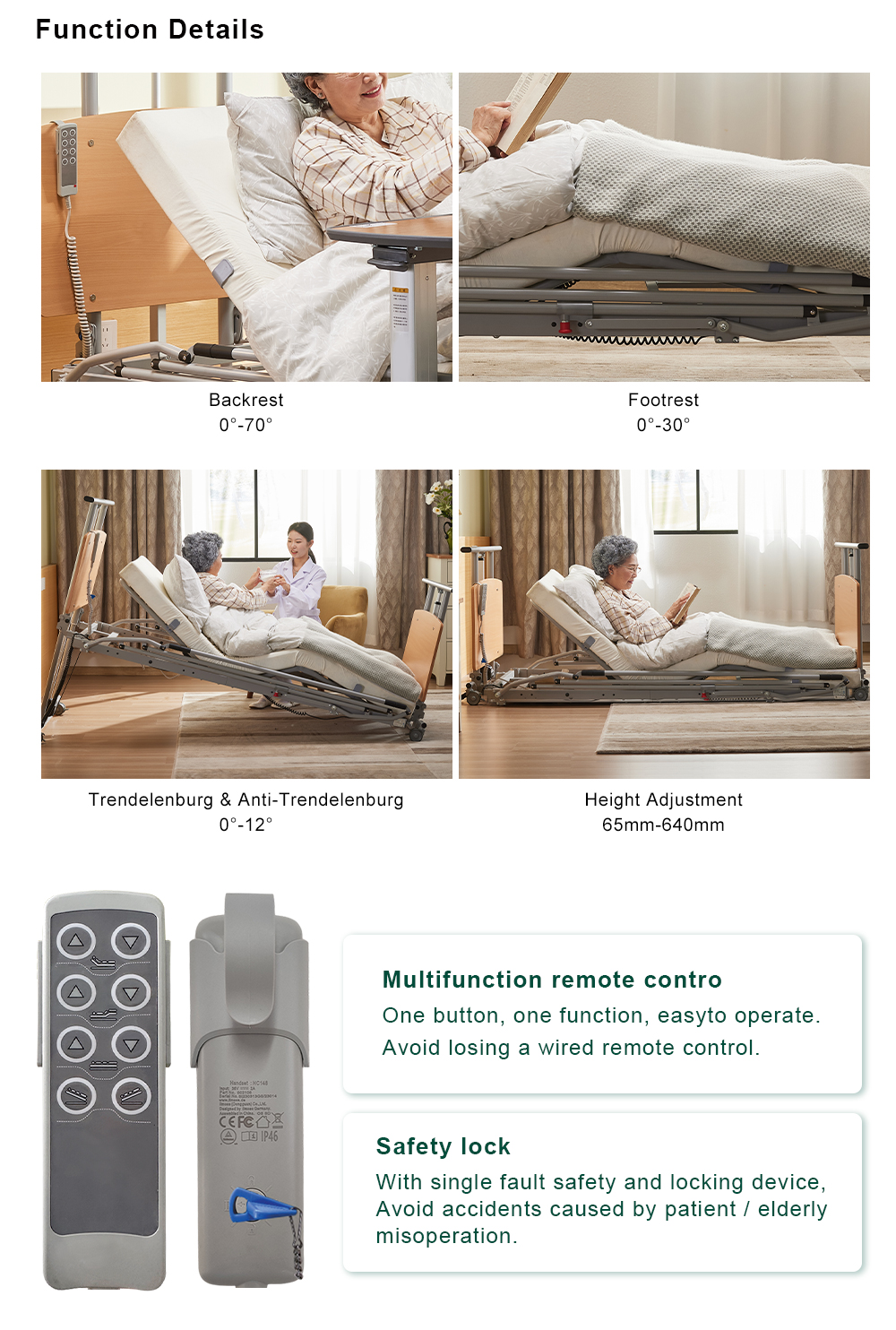

3) Electrically operated back rest to 70°and kneebreak function to 30°

4) Mechanical height adjustment of the footrest in 5 positions. Electrically operated height adjustment 67-640 mm, stroke 573 mm

5) 4 individual lockable castors

6) Different boards and different colors for optional.

7) Low-voltage Volt motor system for extra safety

8) Emergency battery 9V powered lowering is standard in case of mains failure

9) 8-button handset with single-fault safety and locking device

10) In compliance with IEC 60601-2-52

11) Protection class lPX4

12) Max. Patient weight: 170 KG, mattress weight 10kg; Safe working load: 180 KG

13) Optional accessories: 20cm length extension part; 7.5cm width extension part per side.

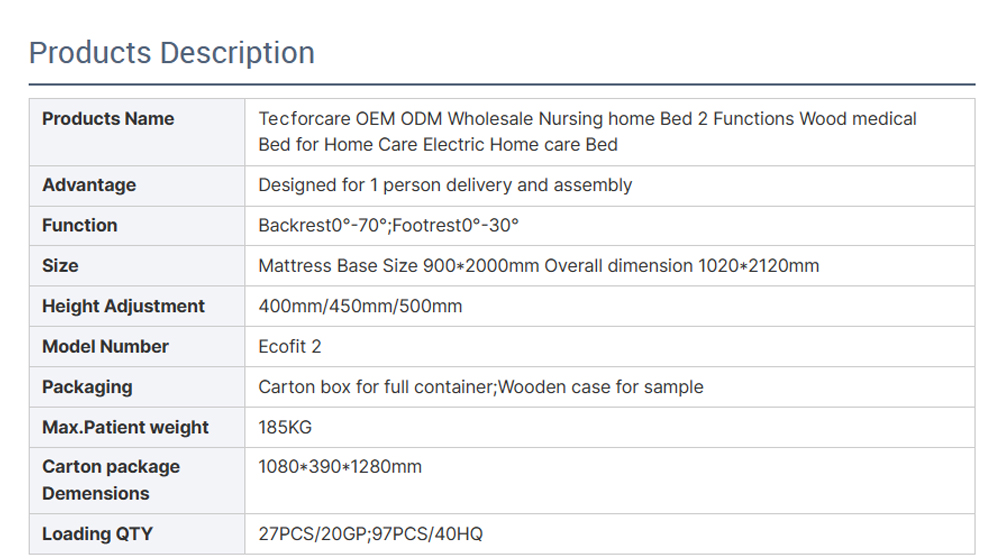

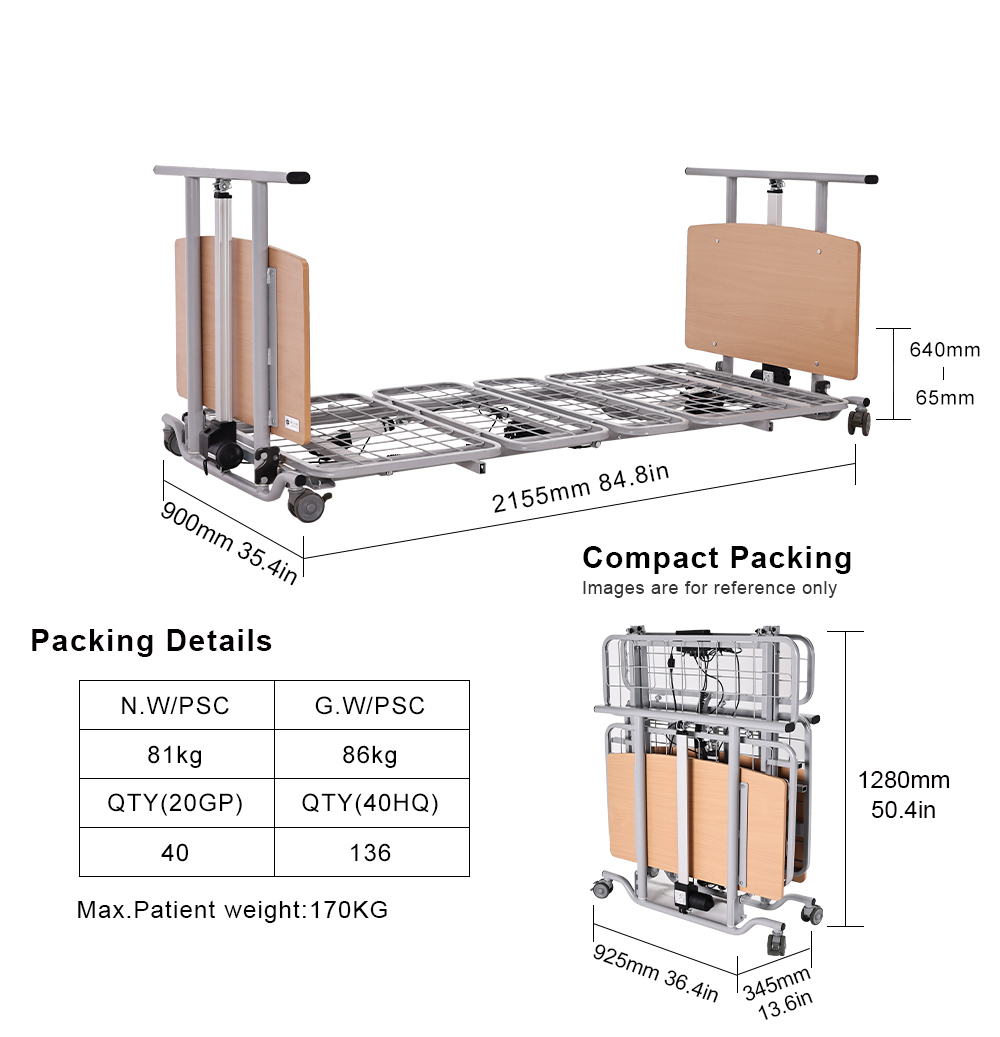

Technical Parameters
