800
Product Advantage
1)4-section steel slats platform base 90 x 200 cm with mattress guidance at head and footrest
2)All metal work powder coated in RAL 9023 (pearl dark grey)

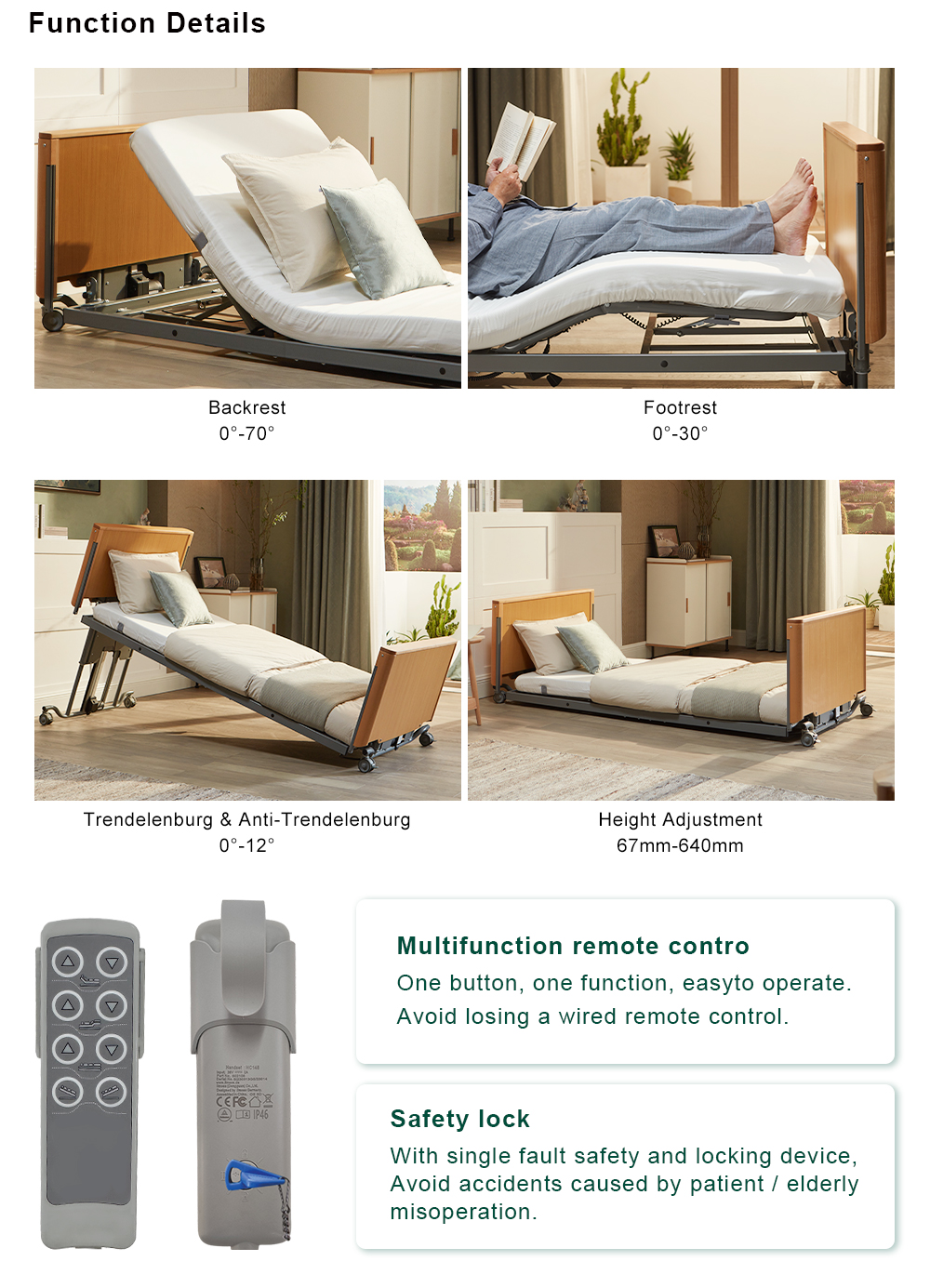

3)Electrically operated back rest to 70°and kneebreak function to 30°
4)Mechanical height adjustment of footrest in 5 positions
5)Electrically operated height adjustment 90-800 mm, stroke 710 mm
6)4 individual lockable castors
7)Cover panel light beech decor, various other decors possible on demand
8)Low voltage 24 Volt motor system for extra safety
9)Emergency battery9V powered lowering is standard in case of mains failure
10) 8 buttons handset with single fault safety and locking deviceIn
11) In compliance with lEC 60601-2-52
12)Protection class lPX4
13)Max. Patient weight: 170 KG, mattress weight 10kg
14)Safe working load: 180 KG
15)Superb stability through hooks
Technical Parameters
| Version | Basic Version | Wider Version | Basic Versionof the extension | Wider Versionof the extension |

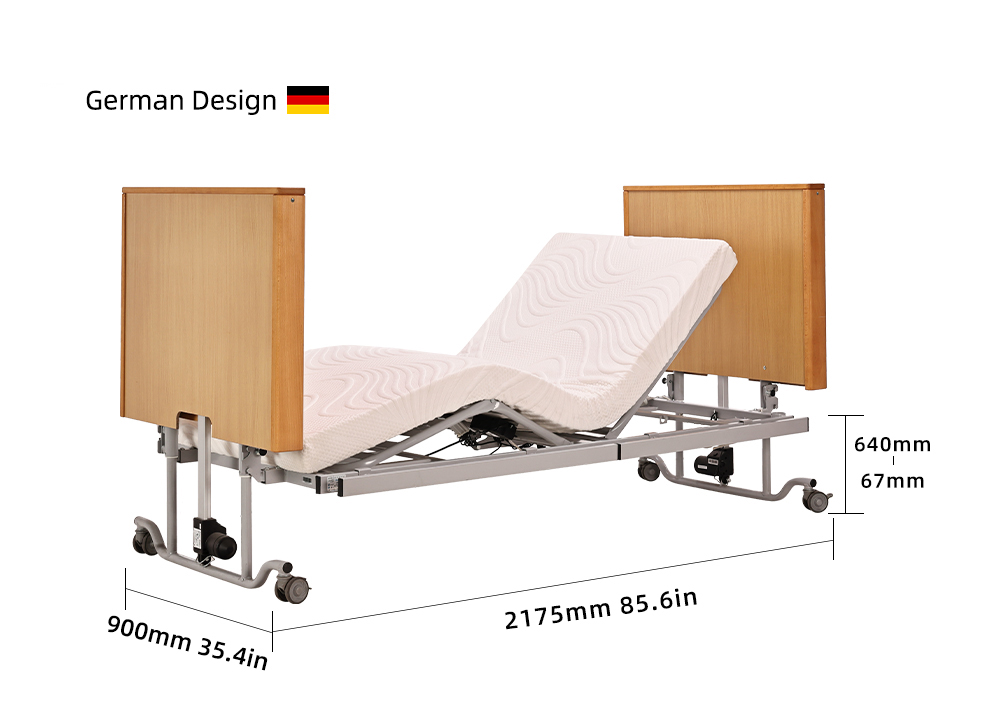

| Product Size | 900x2000mm 35.4x78.7inches | 1050x2000mm 41.3x78.7inches | 900x2200mm 35.4x86.6inches | 1050x2200mm 41.3x86.6inches |
